Using GPUs¶

Some nodes on Apocrita contain GPU cards that can provide huge acceleration for certain types of parallel computing tasks, via the CUDA and OpenCL frameworks.

Access to GPU nodes

Access to GPU nodes is available for free to QM Researchers. Please test your job on the gpushort partition and check that the GPU is being used, then contact us to request access to the required partition(s) in order to use the GPU nodes fully. Note that access to GPU nodes is not permitted for Undergraduate and MSc students, or external users.

Short partition GPU testing

QM Researchers should test their GPU code on the 1-hour gpushort partition before requesting full GPU node access for the first time. Please provide supporting evidence of a working GPU job (a job id, or screenshot of nvidia-smi output) when requesting node access - see below for more information and examples.

Applications with GPU support¶

There are a considerable number of scientific and analytical applications with GPU support. While some have GPU support out of the box, such as Matlab and Ansys, others may require specific GPU-ready builds. These may appear in the module avail list with a -gpu suffix. If you require GPU support adding to a specific application, please submit a request for a GPU build and provide some test data.

Be aware that not every GPU-capable application will run faster on a GPU. For example, an application may only have specific subroutines that offer GPU acceleration - code that is not GPU aware will instead run on the CPU.

Submitting jobs to GPU nodes¶

Different nodes contain different GPUs, CPUs and RAM

Please check the nodes you are entitled to run jobs on for their specifications and tailor your job scripts accordingly. Some nodes are limited to specific faculties/users.

To request a GPU, the --gres=gpu:<count> option should be used in your job submission. Jobs should request an appropriate number of cores per GPU (--cpus-per-gpu=<count>) and RAM per core (--mem-per-cpu=<count>) to ensure the number of cores and RAM requested is proportionate to the number of GPUs requested (please see the examples below). The scheduler will automatically select a GPU node based on availability and other resource parameters, if specified.

For users with access to nodes that have 48 cores or more, you may request up to 16 cores per GPU to better utilise the available resources. To request 16 cores per GPU, please alter your --cpus-per-gpu and --mem-per-cpu requests accordingly (eligible GPU high memory jobs may request up to 20G RAM per core) and ensure your job defines to correct partition(s)/constraint(s), e.g.:

-p sae (Science and Engineering partition, authorised users only)
--constraint=hopper request only nodes containing Hopper H100/H200 cards

We have also added most GPU node types to the gpushort partition which may be used before acquiring access to run longer GPU jobs.

Selecting a specific GPU type¶

For compatibility, you may optionally require a specific GPU type. Nodes with the Ampere A100 GPU may be selected with --constraint=ampere, and Hopper H100/H200 nodes may be selected with --constraint=hopper. To see a full list of constraints for specific nodes, run:

scontrol show node <hostname> | grep Features

For example, for xdg1:

$ scontrol show node xdg1 | grep Features
   AvailableFeatures=hopper,h100,sm_90,80G
   ActiveFeatures=hopper,h100,sm_90,80G

You can request multiple features/constraints using various combinations. Please see the official Slurm documentation for more information.

GPU card allocation¶

Do not set the $CUDA_VISIBLE_DEVICES variable manually

For reasons documented below, please do not set the $CUDA_VISIBLE_DEVICES variable manually in your job scripts.

This advice has changed

The information below has changed - if you previously used Apocrita GPU nodes under UGE, things are slightly different under Slurm. Please review the information below closely if you previously used UGE.

We have enabled GPU device cgroups (Linux Control Groups) across all GPU nodes on Apocrita, which means your job will only be presented the GPU cards which have been allocated by the scheduler, to prevent some applications from attaching to GPUs which have not been allocated to the job.

Under UGE, the CUDA_VISIBLE_DEVICES variable was not exported in jobs, but Slurm will export this using the logic below.

Inside your job, the GPU cards presented to your job will always appear as device 0 to device N, depending on how many GPU cards you have requested. Below demonstrates the devices presented to jobs, per GPU resources request:

GPUs Requested	Devices Presented
1	0
2	0, 1
3	0 - 2
4	0 - 3

Checking GPU usage¶

SSH access is only permitted when running a job on a node

We have enabled the pam_slurm_adopt module on all Apocrita compute nodes. You will only be granted SSH access to a node if you have a currently running job or session on that node, and all commands run will be limited to (and share) the same resources requested for that session.

The monitoring tools below need to be run directly on the nodes allocated to your jobs. You will need to login directly to the node from an existing login node session via SSH (e.g. ssh sbg1 - if prompted for a password, use your standard Apocrita password).

Errors such as:

-bash: nvidia-smi: command not found

indicate that you are either still on the login node, or logged into a node that does not have any GPUs.

You can establish which nodes have been allocated to your jobs using the squeue command, or by referring to the Open OnDemand card for your jobs shown in the "My Interactive Sessions" section.

Checking GPU usage with `nvidia-smi`¶

GPU usage can be checked with the nvidia-smi command e.g.:

$ nvidia-smi -l 1
|-------------------------------+----------------------+----------------------+
| GPU  Name        Persistence-M| Bus-Id        Disp.A | Volatile Uncorr. ECC |
| Fan  Temp  Perf  Pwr:Usage/Cap|         Memory-Usage | GPU-Util  Compute M. |
|                               |                      |               MIG M. |
|===============================+======================+======================|
|   0  Tesla V100-PCIE...  On   | 00000000:06:00.0 Off |                    0 |
| N/A   70C    P0   223W / 250W |  12921MiB / 16160MiB |     97%      Default |
|                               |                      |                  N/A |
+-------------------------------+----------------------+----------------------+
|   1  Tesla V100-PCIE...  On   | 00000000:2F:00.0 Off |                    0 |
| N/A   30C    P0    23W / 250W |      4MiB / 32510MiB |      0%      Default |
|                               |                      |                  N/A |
+-------------------------------+----------------------+----------------------+
|   2  Tesla V100-PCIE...  On   | 00000000:86:00.0 Off |                    0 |
| N/A   30C    P0    23W / 250W |      6MiB / 32510MiB |      0%      Default |
|                               |                      |                  N/A |
+-------------------------------+----------------------+----------------------+
|   3  Tesla V100-PCIE...  On   | 00000000:D8:00.0 Off |                    0 |
| N/A   31C    P0    23W / 250W |      6MiB / 32510MiB |      0%      Default |
|                               |                      |                  N/A |
+-------------------------------+----------------------+----------------------+

+-----------------------------------------------------------------------------+
| Processes:                                                                  |
|  GPU   GI   CI        PID   Type   Process name                  GPU Memory |
|        ID   ID                                                   Usage      |
|=============================================================================|
|    0   N/A  N/A      1557      C   python                          12915MiB |
+-----------------------------------------------------------------------------+

In this example we can see that the process is using GPU 0. We use the -l 1 option which tells nvidia-smi to repeatedly output the status. Should this be run inside a job, GPU 0 would be the card you have been allocated, which might not be system device 0.

If you SSH into a GPU node and run nvidia-smi, you will see all system GPU devices by their real ID, rather than the allocated device number. Similarly, the $SLURM_JOB_GPUS environment variable inside jobs will also show the actual GPU device granted.

Checking GPU usage with `gpu-usage`¶

Work in progress

Checking GPU usage with `nvtop` and `nvitop`¶

Two other tools to check your GPU job are nvtop and nvitop. They are both available in a module called nvtools:

module load nvtools

To run nvtop:

nvtop

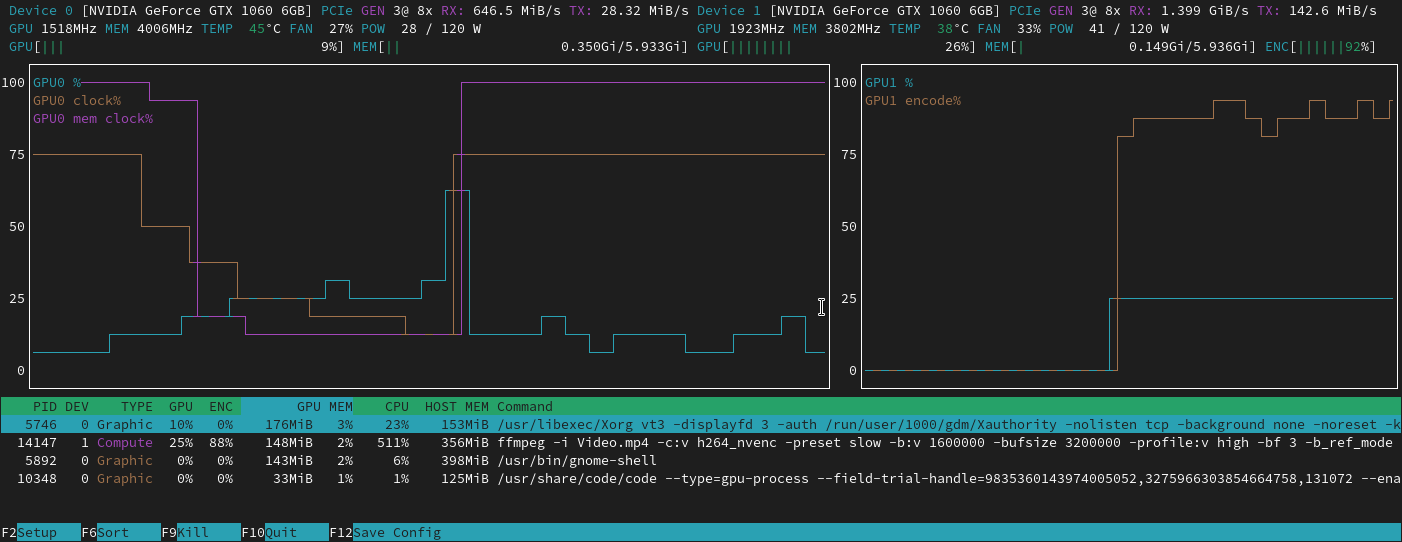

nvtop provides a colourised view of GPU activity on a node, in a similar layout to the popular htop system monitor. More information can be found in its documentation.

To run nvitop:

nvitop

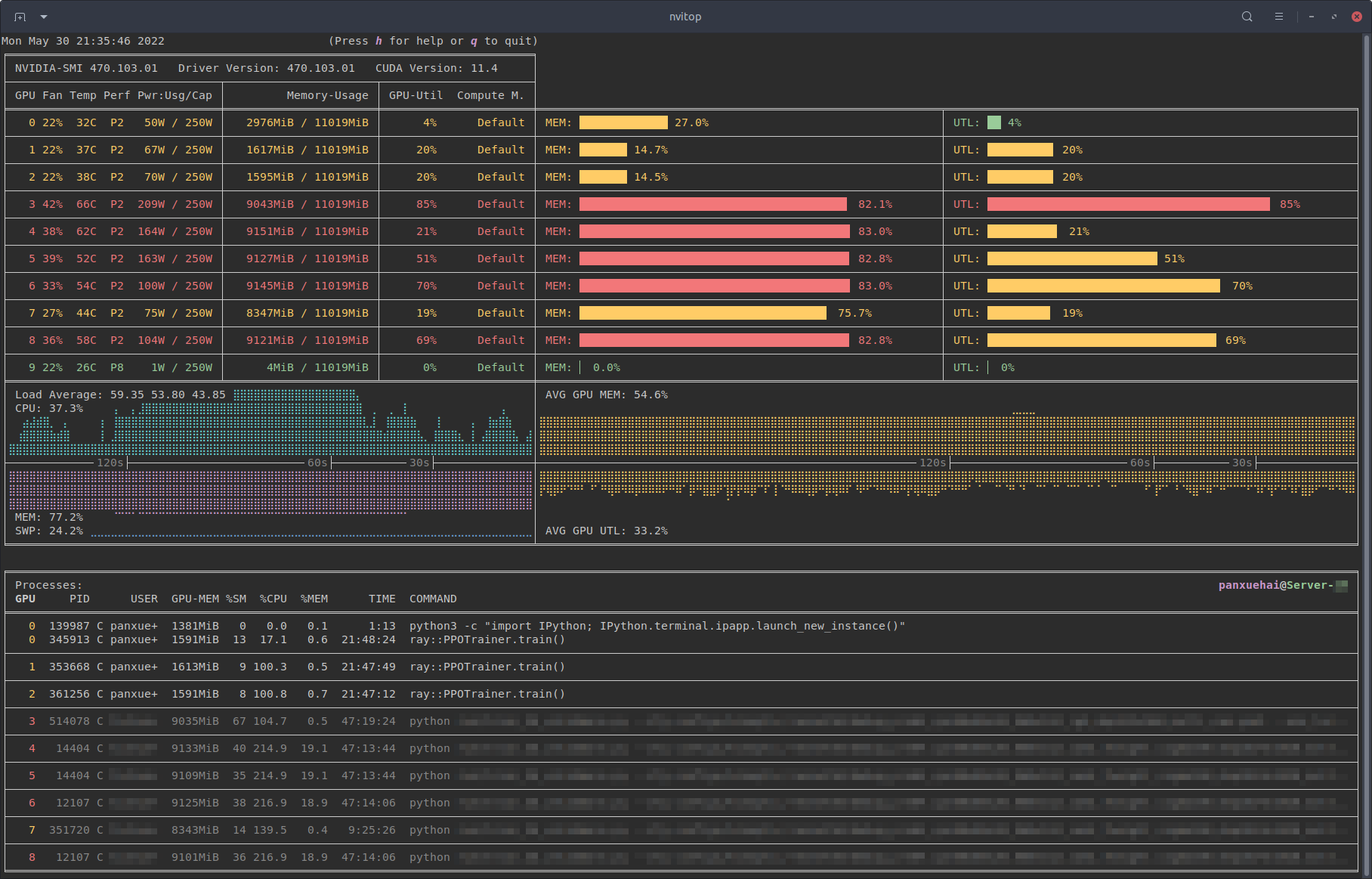

nvitop also provides a colourised view of GPU activity on a node, with a slightly alternative layout compared with nvtop. Press h for help or q to return to the terminal. nvitop has a lot of powerful options which can be explored in its documentation.

Example job submissions¶

The following examples show the basic outline of job scripts for GPU nodes. Whilst the general rule for compute nodes is to strictly request only the cores and RAM you will be using, our GPU jobs are GPU-centric, so requests should focus around the number of GPUs required.

For simplicity, GPU jobs must request at least 8 cores per GPU, and should request at least 11GB RAM per core, as shown in our examples below and other documentation pages (for example TensorFlow). Whilst it is possible for some users to request up to 16 cores per GPU by requesting extra resources, we have not provided a generic example for that here. Please refer to other documentation pages on this site for more information.

--mem-per-cpu does not need to account for GPU RAM

The --mem-per-cpu request only refers to the system RAM, and does not need to account for GPU RAM used. The full GPU RAM is automatically granted when you request a GPU.

Request an explicit number of --cpus-per-gpu

Whilst we set minimal defaults for all GPU partitions, you should always request a specific number of CPUs (-n) and also a specific number of CPUs per GPU (--cpus-per-gpu). This becomes important when requesting larger core counts and more cores per GPU (up to 16), otherwise your job may be rejected by Slurm.

Requesting exclusive access

Requesting exclusive access on the GPU nodes will block other GPU jobs from starting. Please only request exclusive access if also requesting the maximum number of GPUs available in a single GPU node and your code supports multiple GPUs.

Short Partition Testing¶

Request one short partition GPU¶

#!/bin/bash
#SBATCH -J jobname
#SBATCH -o %x.o%j            # single STDOUT/STDERR output file jobname.o<job number>
#SBATCH -p gpushort          # request gpushort partition
#SBATCH -n 8                 # 8 cores
#SBATCH --cpus-per-gpu=8     # 8 cores per GPU
#SBATCH -t 1:0:0             # 1 hour runtime (required to run on the short partition)
#SBATCH --mem-per-cpu=11G    # 11 * 8 = 88G total system RAM
#SBATCH --gres=gpu:1         # request 1 GPU of any type

./run_code.sh

Request two short partition GPUs¶

#!/bin/bash
#SBATCH -J jobname
#SBATCH -o %x.o%j            # single STDOUT/STDERR output file jobname.o<job number>
#SBATCH -p gpushort          # request gpushort partition
#SBATCH -n 16                # 16 cores
#SBATCH --cpus-per-gpu=8     # 8 cores per GPU
#SBATCH -t 1:0:0             # 1 hour runtime (required to run on the short partition)
#SBATCH --mem-per-cpu=11G    # 11 * 16 = 176G total RAM
#SBATCH --gres=gpu:2         # request 2 GPUs of any type

./run_code.sh

Request four short partition GPUs (whole node)¶

Request --exclusive and --mem-per-cpu

On Slurm, the --exclusive flag does not include RAM. You must also explicitly request RAM on the node using --mem-per-cpu. Do not use --mem=0 as this will fail on GPU nodes. Check that the total amount of RAM requested is appropriate for the nodes in the partition you submit the job to.

#!/bin/bash
#SBATCH -J jobname
#SBATCH -o %x.o%j            # single STDOUT/STDERR output file jobname.o<job number>
#SBATCH -p gpushort          # request gpushort partition
#SBATCH -n 32                # 32 cores
#SBATCH --cpus-per-gpu=8     # 8 cores per GPU
#SBATCH -t 1:0:0             # 1 hour runtime (required to run on the short partition)
#SBATCH --mem-per-cpu=11G    # 11 * 32 = 352G total RAM
#SBATCH --gres=gpu:4         # request 4 GPUs of any type
#SBATCH --exclusive          # request exclusive access

./run_code.sh

Production GPU Nodes¶

Specify partitions

Once you have approved GPU access, please add the specific partition(s) you wish your job to be submitted to, as detailed below. Note, you can request multiple partitions (in order of preference) separated by a comma, e.g. -p andrena,sae would request Andrena and Science and Engineering nodes. At the time of job submission, if there were free GPUs on Andrena nodes, the job would run on them, otherwise they would fall back to S&E nodes.

Request one GPU¶

#!/bin/bash
#SBATCH -J jobname
#SBATCH -o %x.o%j            # single STDOUT/STDERR output file jobname.o<job number>
#SBATCH -p gpu               # request the gpu partition
#SBATCH -n 8                 # 8 cores
#SBATCH --cpus-per-gpu=8     # 8 cores per GPU
#SBATCH -t 240:0:0           # 240 hours runtime
#SBATCH --mem-per-cpu=11G    # 11 * 8 = 88G total system RAM
#SBATCH --gres=gpu:1         # request 1 GPU of any type

./run_code.sh

Request two GPUs¶

#!/bin/bash
#SBATCH -J jobname
#SBATCH -o %x.o%j            # single STDOUT/STDERR output file jobname.o<job number>
#SBATCH -p gpu               # request the gpu partition
#SBATCH -n 16                # 16 cores
#SBATCH --cpus-per-gpu=8     # 8 cores per GPU
#SBATCH -t 240:0:0           # 240 hours runtime
#SBATCH --mem-per-cpu=11G    # 11 * 16 = 176G total RAM
#SBATCH --gres=gpu:2         # request 2 GPUs of any type

./run_code.sh

Request four GPUs (whole node)¶
