RDG Nodes¶

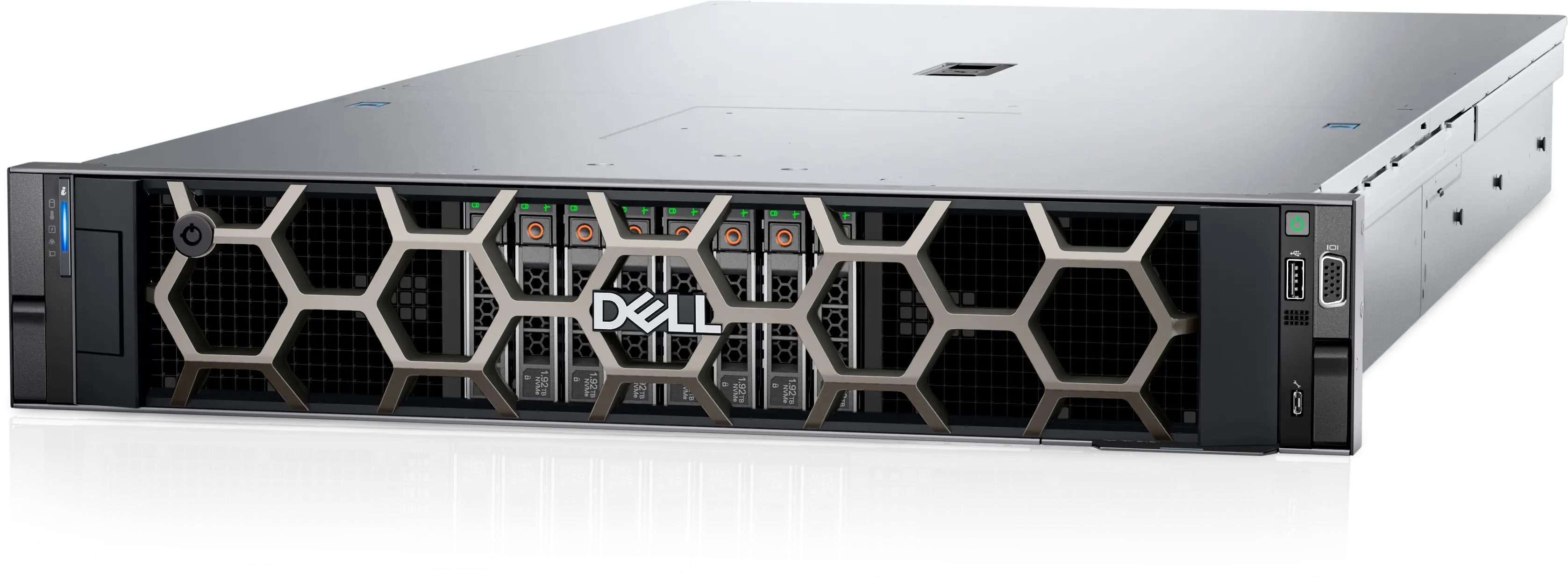

We have 13 Dell PowerEdge R760xa nodes for GPU jobs. RDG1 contains 4 x Nvidia Hopper H100 80GB cards, and RDG2-13 contain 4 x Nvidia Ampere A100 80GB cards.
Accessing the RDG nodes
The RDG nodes with Ampere cards installed are restricted to users within the Science and Engineering (S&E) faculty only.
GPU high memory
The RDG nodes with Ampere cards installed have more RAM available than
standard GPU nodes, supporting up to 240G RAM per GPU (12 tasks per GPU).
Authorised users may use the --mem-per-cpu=20G submission parameter to
request larger amounts of RAM on these nodes.
| RDG (Ampere) | Dell PowerEdge R760xa |
|---|---|
| Processor | 2 x 24 Core Intel Xeon Gold 6326 (Ice lake) |
| Cores/Node | 48 |
| RAM | 1TB |
| Accessible RAM | ~988GB |
| TMP Size | 3TB |
| Interconnect | 25Gb Ethernet |
| GPU | 4 x NVIDIA Tesla A100 |
| GPU architecture | Ampere |
| Form Factor | PCIe |
| Tensor Cores | 432 3rd Generation |
| CUDA Cores | 6,912 |
| GPU Memory | 80GiB per GPU |
| CUDA Compute | 8.0 (CUDA version 11 or greater required) |
| RDG (Hopper) | Dell PowerEdge R760xa |
|---|---|
| Processor | 2 x 16 Core Intel Xeon Gold 6326 (Ice lake) |
| Cores/Node | 64 (Hyperthreading has been enabled) |
| RAM | 512GB |
| Accessible RAM | ~491GB |
| TMP Size | 3.4TB |
| Interconnect | 25Gb Ethernet |
| GPU | 4 x NVIDIA Hopper H100 |
| GPU architecture | Hopper |
| Form Factor | PCIe |
| Tensor Cores | 528 4th Generation |
| CUDA Cores | 14,592 |
| GPU Memory | 80GiB per GPU |
| CUDA Compute | 9.0 (CUDA version 11.8 or greater required) |
